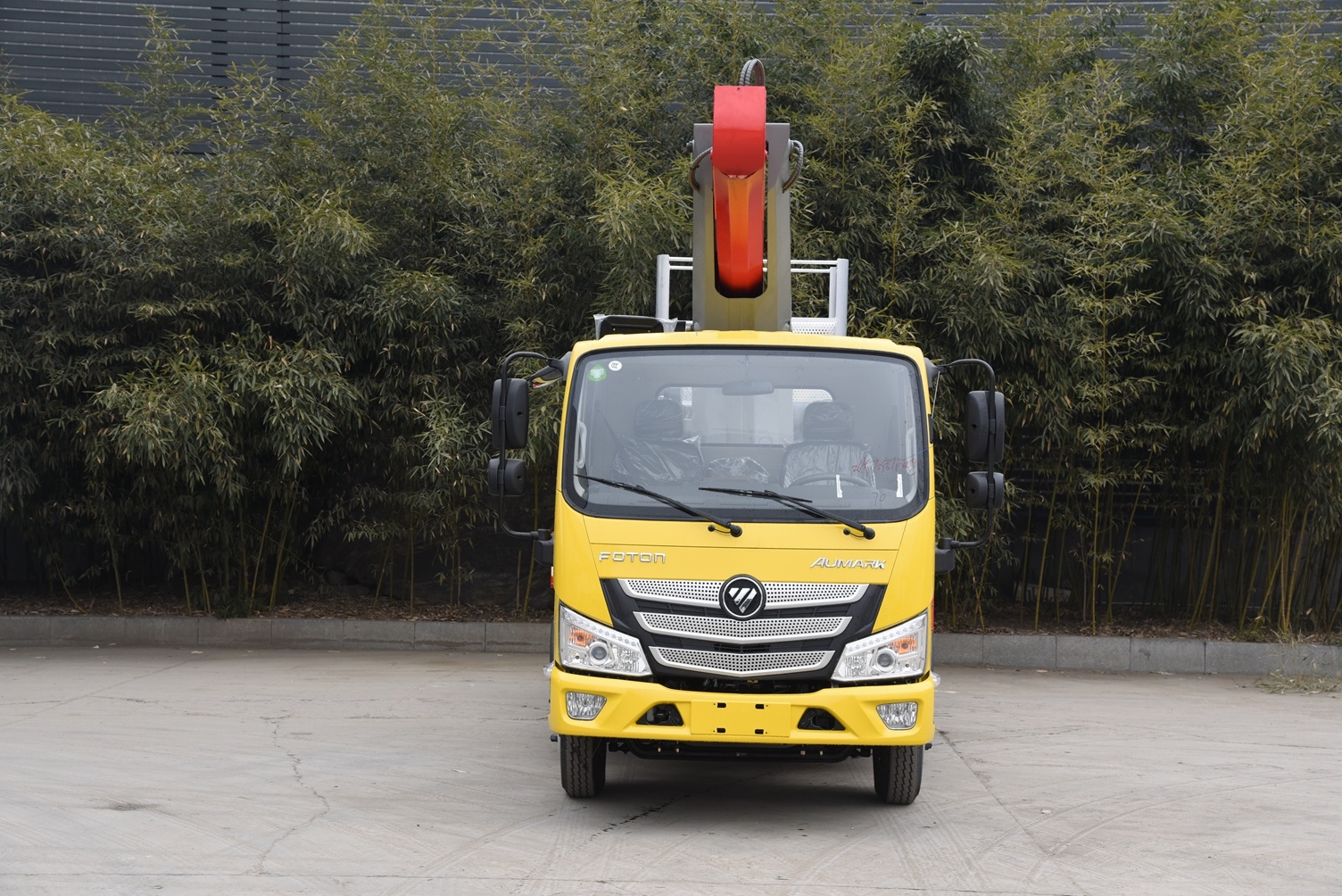

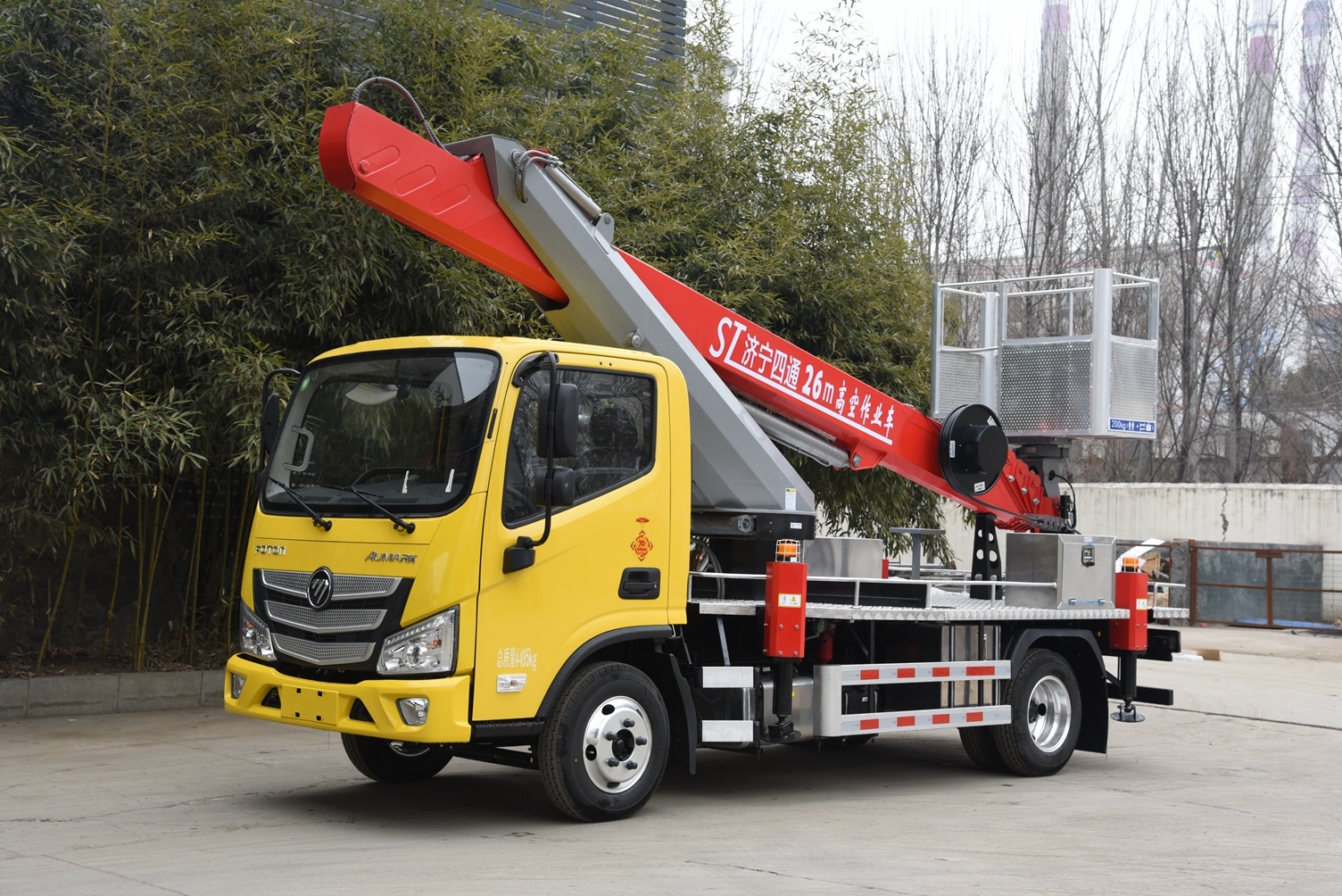

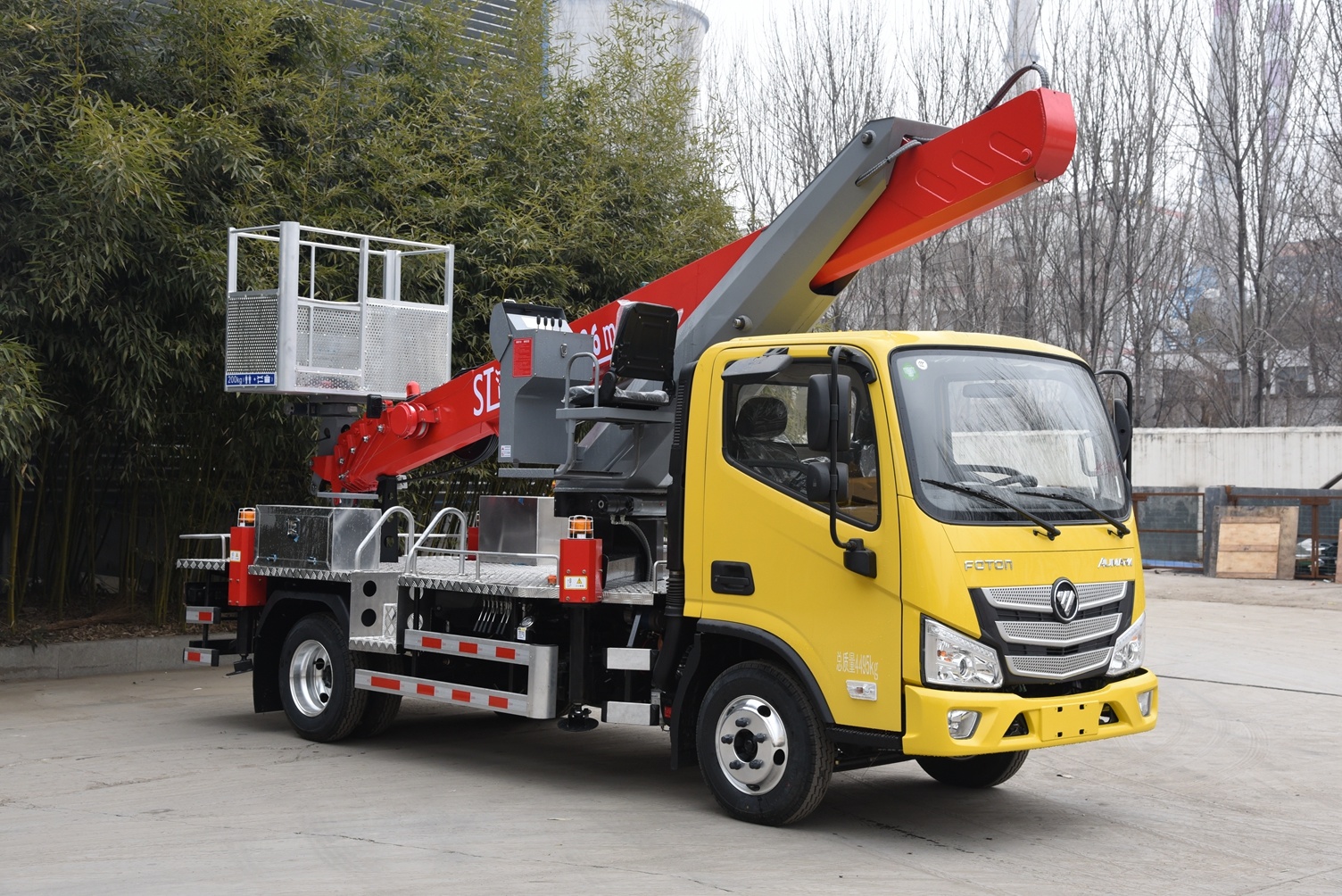

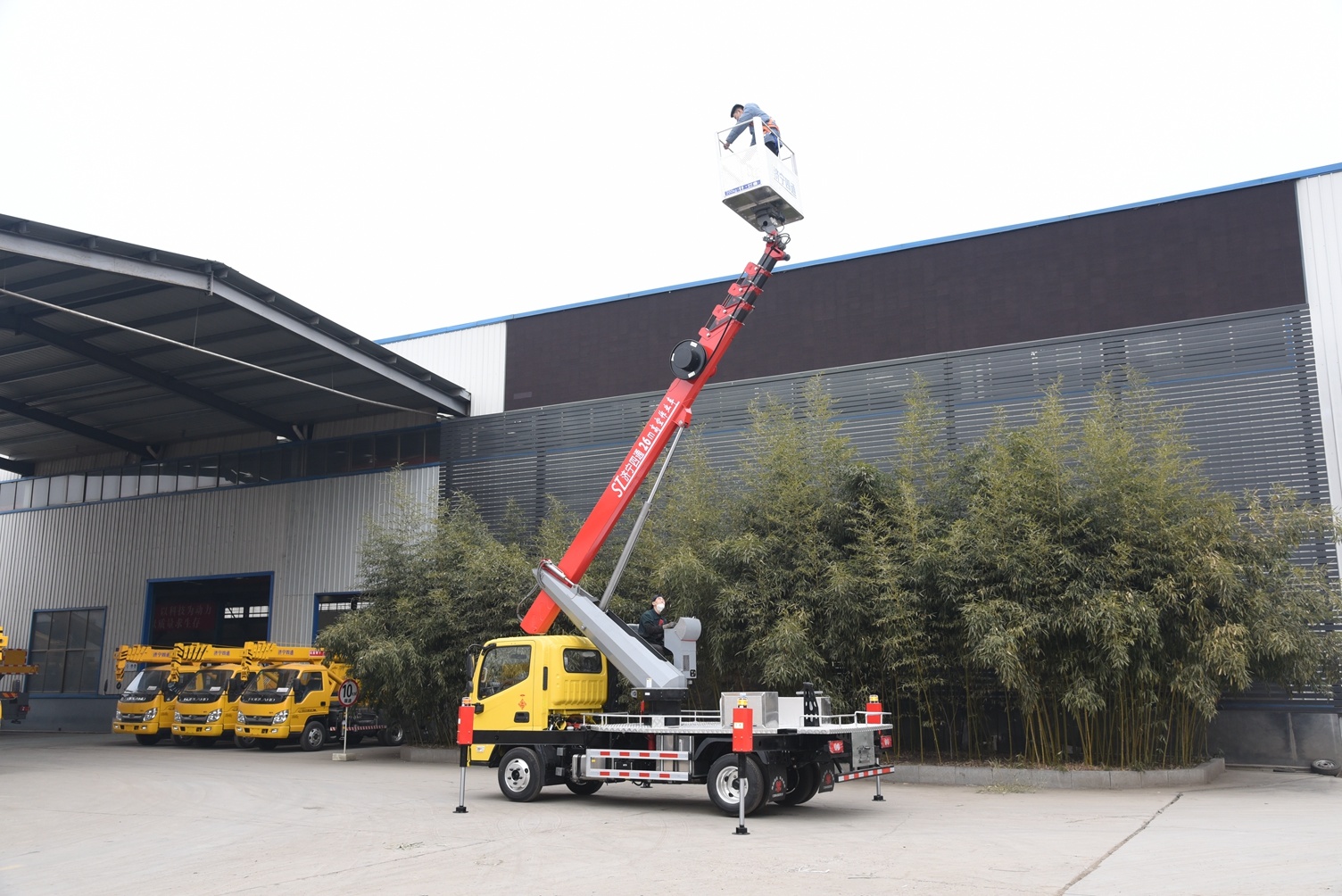

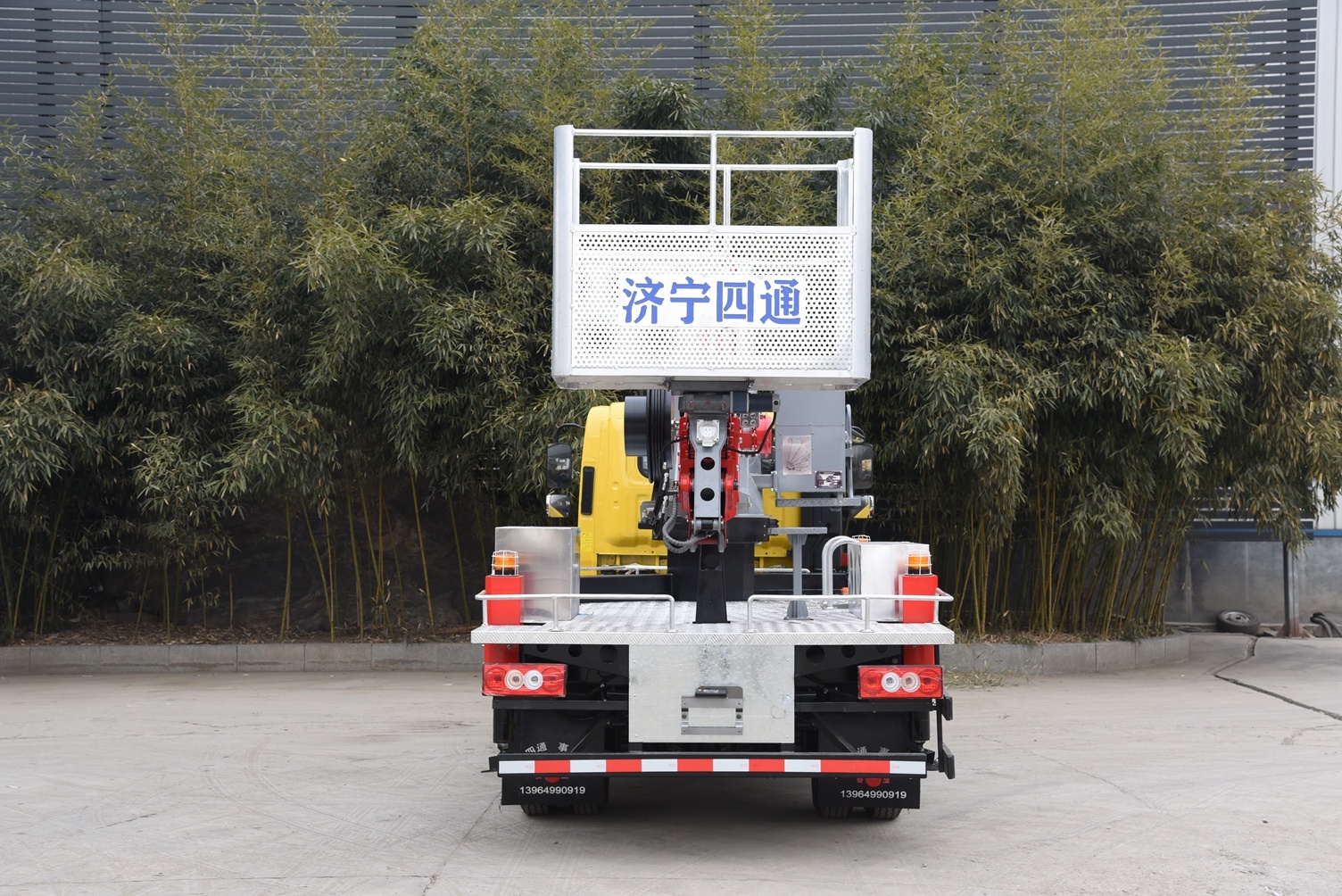

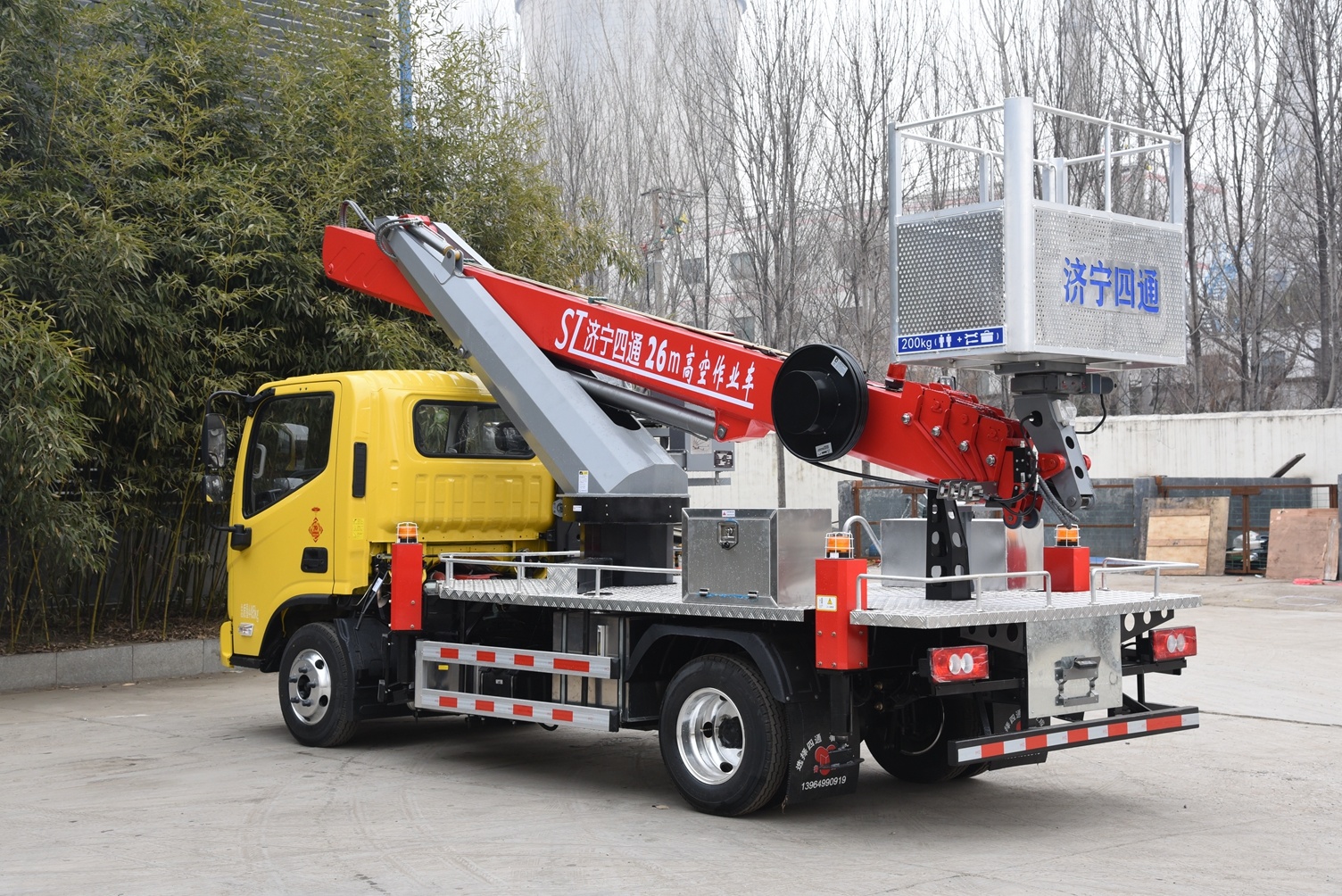

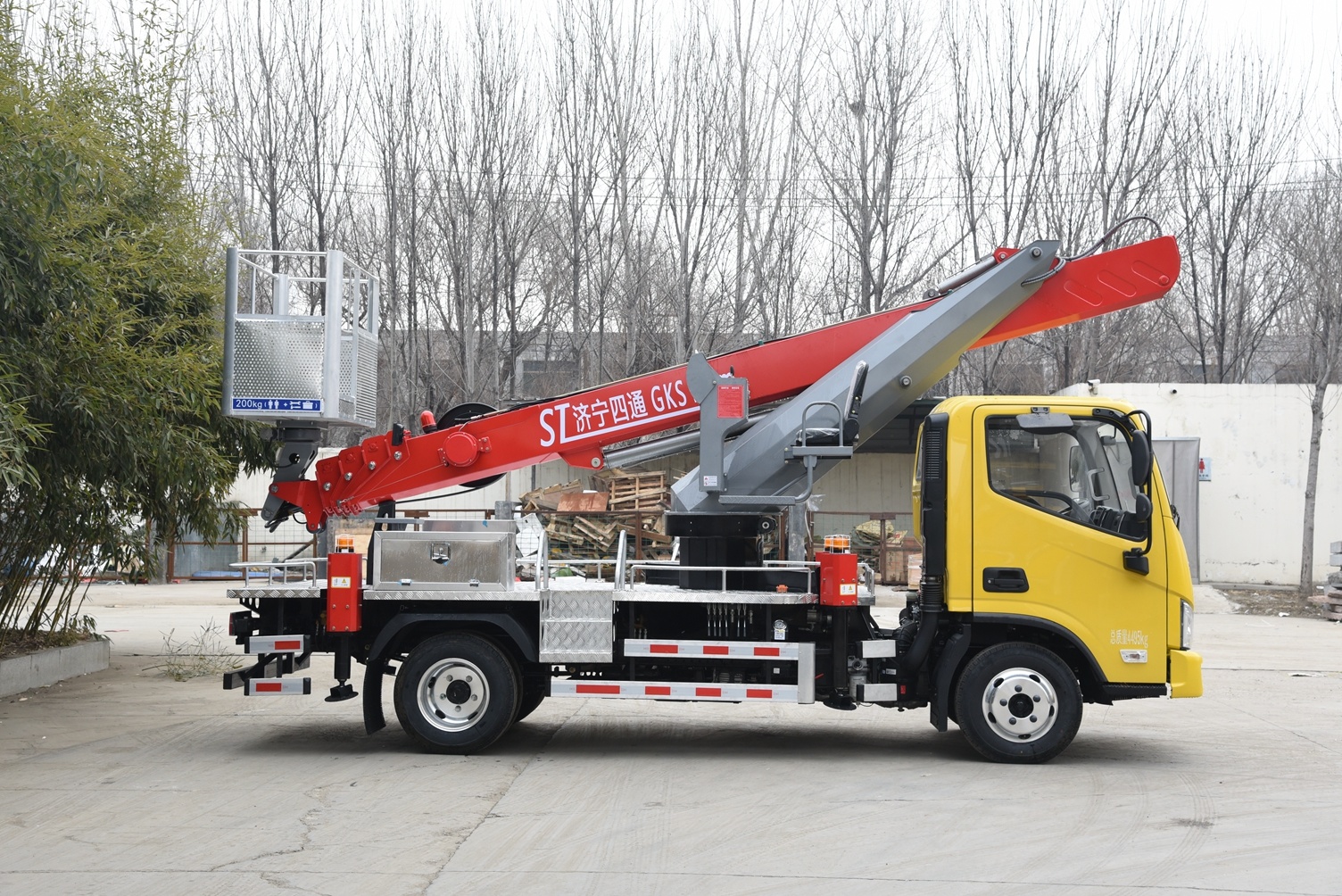

26m Aerial working platform truck
We,Jining Sitong Construction Machinery Co.,Ltd producing mobile cranes from 3 tons to 25 tons. The full range of products includes truck cranes, truck-mounted cranes, tractor cranes, hoisting and excavation trucks,aerial working platform trucks etc., which can do various construction projects for you.
Category
Aerial working platform truck
Description
|
SST5041JGKJL Aerial platform truck main parameters |
||||
|
Category |
Item |
Unit |
Data |
|
|
Size |
Length |
mm |
5995 |
|
|
|
Width |
mm |
2060 |
|
|
|
Height |
mm |
2800 |
|
|
Weight |
Passengers（driver included） |
|
2 |
|
|
|
General weight |
kg |
4495 |
|
|
Main performance parameters |
Platform rated load |
kg |
200 |
|
|
|
Max height |
m |
26 |
|
|
|
Max working radius |
m |
14 |
|
|
|
Span |
Horizontal（Front/Rear） |
mm |
3680/4295 |
|
|
|
Vertical（Front/Rear） |
mm |
3365/3530 |
|
|
Platform rotation |
O |
±90 |
|
|
|
Angle time |
s |
40≤t≤80 |
|
|
|
Boom rotation time |
s/r |
60≤t≤100 |
|
|
|
Leg shrinking time |
s |
80≤t≤150 |
|
|
|
Front overhang |
mm |
1075 |
|
|
|
Rear overhang |
mm |
1790 |
|
|
Drive parameters |
Protract |
mm |
0 |
|
|
|
Rear protract |
mm |
360 |
|
|
|
Wheelbase |
mm |
2800 |
|
|
|
Max drive speed |
Km/h |
100 |
|
|
|
Min clearance |
mm |
300 |
|
|
|
Approach |
O |
21 |
|
|
|
Departure |
O |
16 |
|
